Startrace NextGen is our diagnostics tool designed and compatible for the Off-Highway Engines
OM 93x & OM 47x EU Stage V from Mercedes-Benz*.
Simple. Reliable. Certified.
Simple Application

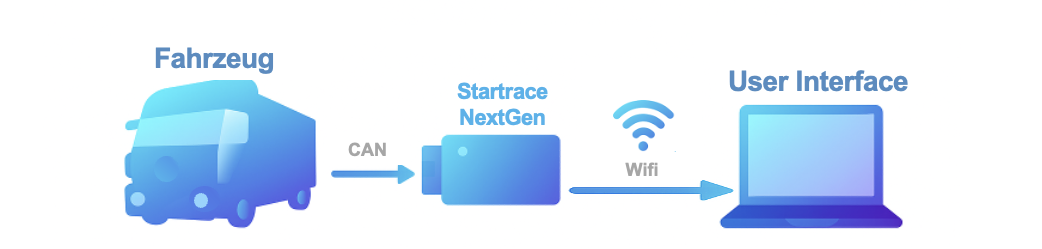

Connect Easily to the diagnostic tool over WiFi.
No cabling required! Remote Analysis & Cloud Integration.
Wide Compatibility & Flexibility.
Streamlined state-of-the-art technology
Innovative PCB design with state-of-the-art electronic components.
Reliability and Continous Improvement
Error data is stored in a central cloud in order to continuously improve product functionality.
Product Safety
CE-certified technology
Our product meets the highest European quality and safety standards. It is fully CE certified and tested according to all relevant EU directives. This guarantees reliable performance and user safety.
Download the official EU Declaration of Conformity here.
User Manual
Download our User Manual
Find more detailed information about the installation of the system, diagnostic functionalities, example usages and much more!
What exactly is inside?
Read Below.
The StarTrace NextGen allows reading identifications, reading and clearing fault codes, reading and writing parameters, printing vehicle status as a PDF, and clearing emissions-related errors. With cloud connectivity, fault analysis can be performed remotely, data can be prepared for fleet overviews, and additional control units can be integrated on demand, offering universality and flexibility.
Identification: View identifications of all detected engine control units (ECUs) in the menu bar under “Identification.” Data can be refreshed at any time using the Refresh button.
Fault Codes: All detected fault memories, sorted by control unit, can be viewed under “Fault Codes.” Environmental data for each fault can be accessed, and fault memories can be cleared using the trash icon. Data can also be refreshed as needed.
Health Report: All retrieved data can be exported as a PDF via the printer icon in the “Identification” or “Fault Memory” menu.
Configuration: Various settings can be adjusted under “Configuration,” including OBD2 pin assignment, CAN bus baud rate, and installed control units.
Software Update: The interface can be updated to meet specific customer requirements, ensuring the tool remains current and compatible.
The interface is compatible with off-highway Mercedes-Benz engines, including OM900, OM934, OM936, OM460, OM470, OM471, and OM473, and supports four control units: CPC (Common Powertrain Controller), MCM (Motor Control Module), ACM (Aftertreatment Control Module), and TCM (Transmission Control Module). This allows professional users to reliably diagnose and manage a variety of vehicle types.
The enclosure is 3D-printed from flame-retardant PC-ABS (polycarbonate-ABS blend) and protects the high-performance electronics based on an ESP32-S3-WROOM-1 microcontroller. Additional features include a micro-SD slot, DC-DC converter (L78S05CV), two CAN transceivers (MCP2551), and a programmable status LED, making the interface compact, robust, and ready for professional use.
Application Videos
Discover StarTrace NextGen in Action!
Set-Up Connection and Start-Up
Read Live Data
Read and Delete Emission Related Fault Codes
Write Parameters
Update Firmware
Update License
We have multiple product available, fit to your need.
Basic License or Admin License
Choose between our StarTrace NextGen with Basic license 1 year, 2 years or with Admin License 1 Year and 2 years.
